Naming Editor

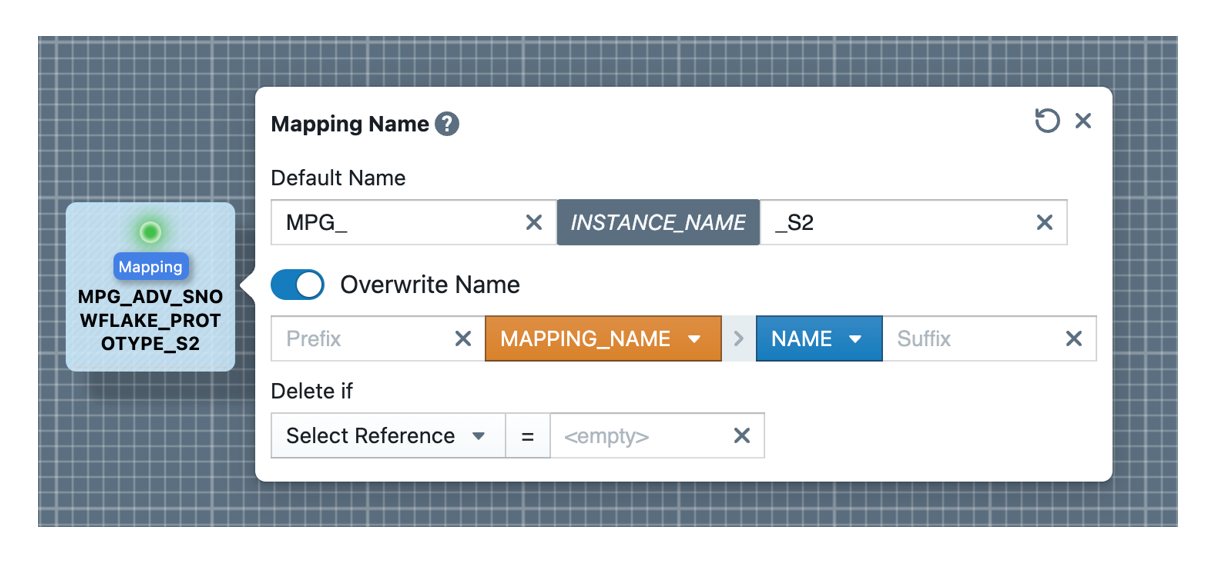

To give objects a dynamic naming rule, there is the Naming Editor. In this editor, a default naming rule consisting of prefix, instance name and suffix can be specified. The instance name is to be seen here as a placeholder, in whose place the name of an instance is inserted later.

In addition to the default name rule, there is also an overwrite rule, which is only applied if the selected functional role is contained in an instance. This can be used, for example, to override the naming convention for mappings. If you activate the checkbox "Overwrite Name", you also have to select a Functional Role and an Instance Property. The prefix and suffix are optional.

Within the name editor there is also the possibility to specify a condition for the deletion of an object. If this condition is true, the object will be deleted from the generated package.
